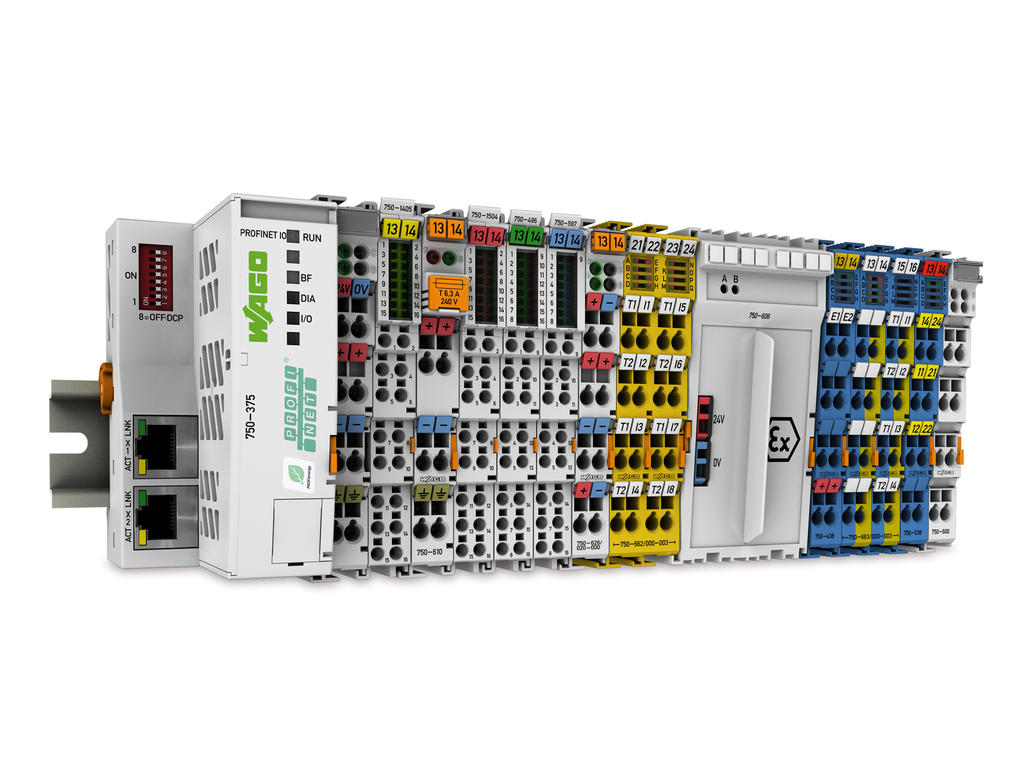

The WAGO-I/O-SYSTEM 750/753 is characterized by its universal application scope and extensive product portfolio. With more than 500 different modules, the versatility and flexibility is so great that virtually every requirement within the broadest range of industries is covered.
Advantages:
- Fieldbus-independent – compatible with all prominent fieldbus protocols & ETHERNET standards
- Flexible platform adapts to diverse applications and environments
- Tested and approved worldwide
- Wide range of accessories for marking and connection technology
- CAGE CLAMP® connection technology for vibration-proof, fast and maintenance-free connections
Maximum Fieldbus Independence
The system’s modularity is also reflected in its support for numerous fieldbus systems and ETHERNET standards. Depending on the application, it is possible to choose between fieldbus couplers and communication modules for different protocols.
Worldwide Approvals
International approvals for building and industrial automation, as well as the process and shipbuilding sectors, guarantee worldwide use – even under harsh operating conditions, e.g., ATEX, BREx, IECEx, UL, UL ANSI/ISA and shipbuilding.
Clear Identification
Pullout group markers identify module functionality (integrated or as an option). Connector assignment and technical data are located on the side of the I/O module. The WAGO WSB marker system also allows for module- and channel-related identification.
Extremely Compact
Our patented mechanical design leads to extremely compact I/O nodes. I/O modules can accommodate up to 16 channels in a 12 mm (1/2”) wide housing.
- Finely granular I/O modules enable node customization
- Space-saving design permits high integration density
Pluggable Connections
The 753 Series Modules are 100 % compatible with the 750 Series and feature pluggable connectors. A detachable wiring interface allows an operator to easily replace a module without removing and then rewiring all pre-existing wiring. This convenience virtually eliminates installation errors and saves time – if needed, this can be executed via placeholder modules.
Maximum Reliability and Ruggedness
The WAGO-I/O-SYSTEM is also designed for applications operating under the most demanding environmental conditions in accordance with the highest standards, e.g., those required in shipbuilding. The system is distinguished from other products that are solely intended for industrial use because of:
- Greatly increased vibration rating
- Significantly greater immunity to interference (ESD)
- Lower emission of interference
- Larger voltage fluctuation range
- Improved ruggedness for continuous operation in upper temperature ranges
In addition, CAGE CLAMP® spring pressure connections ensure superior reliability. Integrated QA measures in the production process and 100 % function testing ensure consistent quality.
Maximum Flexibility
Each node in the WAGO-I/O-SYSTEM can be configured to meet each channel’s requirements, and various potentials and signal types are available (granularity of 1–16 channels). Digital and analog I/O modules, as well as specialty modules, can be freely mixed in the same node. Supply modules permit different voltages (e.g., 24 V, 120 V, 230 V) within the same I/O node.
Easy to Use
The modular, DIN-rail-mount design allows for easy installation, expansion and modification of the I/O node. The straightforward design prevents installation errors.
In addition, proven CAGE CLAMP® technology offers fast, vibration-proof and maintenance-free connections that are independent of operator skill. Depending on the I/O module’s granularity, field peripherals can be directly wired using 1-, 2-, 3- or 4-wire technology.
